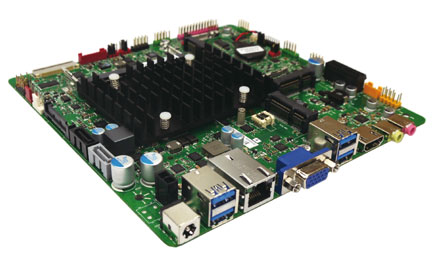

Form Factor |
Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches]) |
Processor Chipset |
Intel Braswell N3160 Processor with integrated graphics |
Memory |
Support for dual channel DDR3L 1066/1333 SO-DIMMs
|
Support for up to 8 GB of system memory on a single SO-DIMM (or 4 GB each by 2 SO-DIMM)
|
204-pin DDR3L SO-DIMM
|
2 |
Graphics |
Integrated graphics:
|
Digital displays (HD-Out)
|
Analog displays (VGA)
|
Internal flat panel displays:
|
LVDS
|
Embedded DisplayPort* eDP*
|
External graphics support via a PCI Express 1.0a x1 graphics add-in card connector
|
Audio |
2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC888S audio codec supporting:
|
Analog stereo line-out (back panel jack)
|
In-chassis stereo speakers support (3 W/3 Ω via an internal header)
|
Expansion Capability |
PCI Express x1 add-in card connector
|
1 |
PCI Express Full-/Half-Mini Card slot
|
1 |
PCI Express Half-Mini Card slot
|
1 |
Peripheral Interfaces |
USB 2.0 front panel ports
|
5 (Headers) |
USB 3.0 back panel connectors (blue)
|
4 |
SATA 3.0 Gb/s
|
2 |
SATA 3.0 Gb/s port (multiplexed with an mSATA port, routed to the PCI Express Full-/Half-Mini Card slot)
|
1 |
Legacy I/O |
Legacy I/O Controller (NCT6683D) that provides:
|
Powered RS232
|
2 |
Parallel port via an onboard header
|
1 |
LAN Support |
Realtek RTL8111G-CG Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs |
BIOS |
BIOS resident in a Serial Peripheral Interface (SPI) Flash device
|
Support for Advanced Configuration and Power Interface (ACPI), and System Management BIOS (SMBIOS)
|
Hardware Management |
Nuvoton NCT6104D based subsystem, including: |
Voltage sense to detect out of range power supply voltages
|
Thermal sense to detect out of range thermal values
|
3-pin system fan header
|
Power Requirement |
DC connectivity via back-panel DC jack(2.5mm/ ID, 5.5mm/ OD)
|
Internal 2 pin power connector
|
Environment |
Operating Temperature: 0°C to +60°C
|
Storage Temperature: -20°C to +70°C
|
Safety |
CE
|
FCC |
Ersetzen sollte dieses Board ein original Intel DN2800MT mit nur 1.86 GHz. CarTFT bietet hier dieses Mitac als 4x2,4GHz an. Diese Angabe ist schlichtweg falsch! Der verbaute J3160 läuft mit nur 1.6 und nicht 2.4 GHz. Leider habe ich nicht erst bei Intel recherchiert, sondern der Angabe "4x2.24Ghz CPU" von CarTFT getraut.
