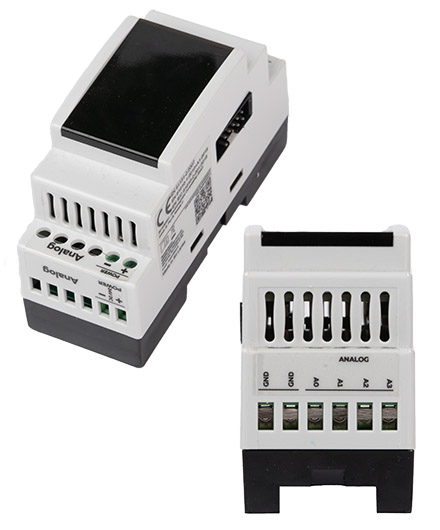

NORVI-EX-ANV01 (4x Digital I/O 0-10V ADS1115 16 bit ADC, I2C)

NORVI-EX-<b>ANV01</b> (4x Digital I/O <b>0-10V</b> ADS1115 16 bit ADC, I2C)

Expansion Module Adding functions for controllers NORVI is always about on connectivity and expandability. This is the time to make use of Expansion port of NORVI Controllers. The series of expansion modules connects to NORVI IoT controllers via its I2C and UART connections. You can add more features to the NORVI Controller without huge customizations. NORVI provides true technology with reliability for industrial applications being worlds iot hardware manufacturer. We have included NB-IoT, LoRa and analog modules as expansions.

  • 4 channel 0 – 10V inputs with ADS1115 16 bit ADC
  • I2C Interface with controller
  • Input voltage range upto 10V
  • [more]

    Share

  • 79.95 EUR
    incl. 19% VAT, plus shipping
    In Stock (7 pcs)

    Add to cart

    Expansion Module Adding functions for controllers NORVI is always about on connectivity and expandability. This is the time to make use of Expansion port of NORVI Controllers. The series of expansion modules connects to NORVI IoT controllers via its I2C and UART connections. You can add more features to the NORVI Controller without huge customizations. NORVI provides true technology with reliability for industrial applications being worlds iot hardware manufacturer. We have included NB-IoT, LoRa and analog modules as expansions.

  • 4 channel 0 – 10V inputs with ADS1115 16 bit ADC
  • I2C Interface with controller
  • Input voltage range upto 10V
  • Over voltage protection
  • Programmable Gain Amplifier


  • Main
    Range of product NORVI Expansion
    Product type Expansion Module - NORVI-EX-ANV01
    Rated supply voltage 12 - 24V DC
    Field of Application Voltage measurement
    Applicable Devices NORVI IIOT / NORVI Arita
    Aquistition 0 - 10 V DC
    ADC Chip ADS1115
    Module Address I2C - 0x48
    Resolution 16bit

    Complementary
    Local signalling 1 LED green for PWR
    Electrical connection Removable screw terminal block for inputs and outputs (pitch 5.08 mm)
    Mounng support Top hat type TH35-15 rail conforming to IEC 60715
    Top hat type TH35-7.5 rail conforming to IEC 60715
    Height 86.00 mm
    Depth 59.00 mm
    Width 35.00 mm
    Product weight 0.12 Kg

    Environment
    Relave humidity 10 ...95% without condensation in operation
    IP degree of protecon IP20
    Operating altitude 0...2000m
    Storage altitude 0...3000m
    Shock resistance 15 gn for 11 ms
    Operating temperature -40 to +85 'C

    Analog Module communication
    Module Type ADS1115
    Communication I2C
    Module Address 0x48
    Command set Refer datasheet
    Data sheet Download (PDF)
    Data sheet Print view
    Datasheet Download (PDF)
    Brochure Download
    Example Libaries Download
