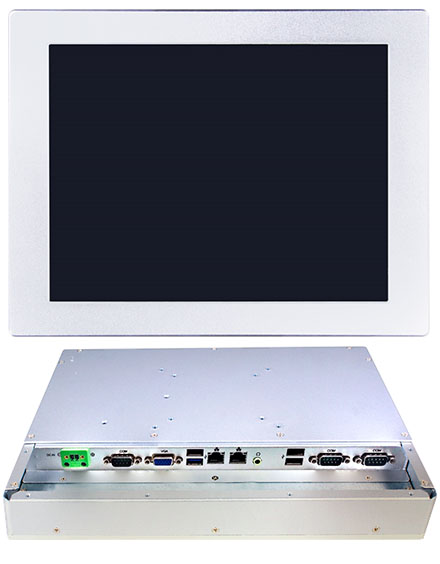

Jetway HPC-121SC-2930-4G Panel-PC (Intel N2930) [12.1" Capacitive Touch Panel TFT, 4GB RAM, IP65]

Jetway HPC-121SC-2930-4G Panel-PC (Intel N2930) [12.1" Capacitive Touch Panel TFT, 4GB RAM, <b>IP65</b>]
  • BayTrail-M N2930 !
  • 4GB RAM !
  • IP65 !
  • SIM Slot !

  • 12.1” 450 nits high brightness TFT LCD with LED backlight
  • Projective capacitive type Touch
  • Onboard Intel® Bay Trail-M N2930 1.83GHz Quad Cores CPU
  • Onboard 4G/1333MHz DDR3L Memor
  • Support Dual Intel® Gigabit LAN
  • Support 3 * COM ports (COM2/COM3 Support RS422/485)
  • Support 2.5” SATA HDD
  • 1 * M-SATA Socket
  • 1 * Mini PCI-E Socket
  • Support 4G SIM Card
  • IP65-rated front bezel




Share

949.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
 Display
Front Bezel – IP65, NEMA 4 rugged protection, metal front bezel
Display Type – 12.1″ With LED Backlight
Brightness (cd/m²) – 450 nits
Display Color – 262K
Resolution – 1024 x768 @ 60Hz
Viewing Angle (H/V) – 160°/160°
Pixel Pitch – 0.24 x 0.24 mm
Aspect Ratio – 4:3
Contrast Ratio – 700:1
Response Time – 8 ms
Operating Temperature – -20 ~70° C
 Touch Screen
Type – Projective capacitive type
Active Range – 290.0 x 220.5mm ±0.3mm
Transparency – 85 ±5%
Surface Hardness – ≧6H (ASTM D3363, pressure 1N/45°)
Operating Force – ≦ 10g
Operating Temperature – -20 ~70° C
 Main System
CPU – Intel® Bay Trail-M N2930 1.83GHz/QC
RAM – 4G 1333MHz DDR3L SAMSUNG DRAM
BIOS – 64MB SPI Flash ROM
Storage – 1 * 2.5” SATA HDD (SATA-2)
– 1 * M-SATA connector
Watchdog Timer – 256 levels, 0~255 sec.
OS Support – Windows 7 / 8.1 / 10 / Linux (Option)
 I/O Connector
I/O Ports and Switches – 1 * USB3.0
– 3 * USB2.0
– 1 * RS232
– 2 * RS232/422/485
– 1 * CRT
– 2 * LAN (Intel® I211AT Gigabit LAN)
– 1 * Line-out
– 1 * Euro terminal block 9~24V DC input
 Expansion Interface
Expansion – 1 * PCI-E mini card for wifi or 3G
 Power
Power Input – AC version: 100~240V AC-DC 60W power adapter or
– DC version: 9~24VDC with over current protection fuse
Power Consumption – 27W
 Dimension
Case Dimensions – 308.0mm*238.0mm*40.0mm
 Certifications
Certifications – CE, FCC, IP65
 Environment
Temperature – Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: -10 ~ 60° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 70° C
Shock – Operating: 15G，11ms duration
Vibration – Operating: 5~500Hz/1 Grms
Data sheet Download (PDF)
Data sheet Print view
