Model
|
– HB368F21-6412-W (non-WiFi)
– HB368F21I-6412-W (WiFi)
|
CPU/Chipset
|
– Intel® Elkhart Lake SoC Processor ( J6412 , TDP 10W)
|
BIOS
|
– AMI Flash ROM
|
Memory
|
– 1* DDR4 3200MHz SO-DIMM up to 32GB
|
Network
|
– 2* Realtek RTL8119I GbE
|
Graphics
|
– Intel® HD Graphics, shared memory
– 3* DP (Max Resolution: 4096×2160@60Hz)
– Support Triple Displays
|
Storage
|
– 1* M.2 M-key (2242/2280, PCIe Gen.3 x2/SATA interface) support NVME
– 32GB eMMC onboard (option)
|
Expansion
|
– 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
– 1* M.2 B-key (3042,USB3.0 interface)
|

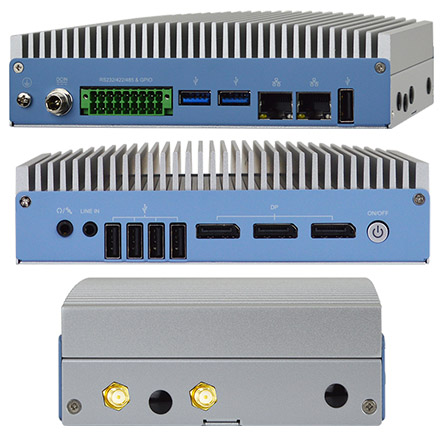

Rear Panel I/O
|
– 2* RJ45
– 2* USB3.1(Gen.2)
– 1* USB2.0
– 1* 8 bit GPIO (Phoenix Connector 2*9 PIN)
– 2* RS232/422/485 (Phoenix Connector 2*9 PIN)
– 1* DC in (Lockable)
|
Front Panel I/O
|
– 1* Power button + Power LED
– 4* USB2.0
– 1* Audio(Line out+MIC)
– 1* Line in
– 3* DP
|
Internal Connector
|
– SIM Card Holder
|
Power Source
|
– Adapter : AC 90~240V input / DC12V_60W output
– MB : DC12~36V input
|
Compliance
|
– CE, FCC, LVD, RoHS, ErP Ready
|
Dimensions
|
– System: 160.2 (W) x 106 (D) x 43.5 (H) mm
– Net Weight: 1.01KG: Gross Weight: 1.52KG
|
Temperature
|
– Operating Temperature: -20 ~ 80° C (Under the condition of using M.2 interface SSD)
– Storage Temperature: -20 ~ 60° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
OS Support
|
– Windows 11, Linux
|
