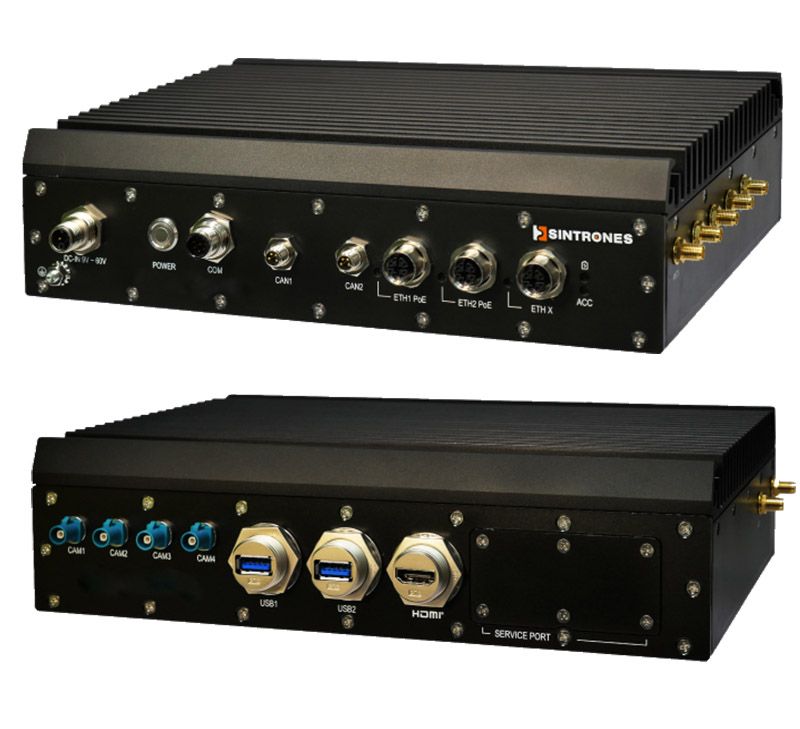

Sintrones IBOX-650P-T1-JAO64-LE (NVIDIA Jetson AGX Orin, 64GB, PoE, T1, GMSL support)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Sintrones IBOX-650P-T1-JAO64-LE (NVIDIA Jetson AGX Orin, 64GB, PoE, T1, GMSL support)
  • T1 Automotive Ethernet !
  • 64GB RAM !

NVIDIA® Jetson AGX Orin Edge AI Embedded Computer with T1 Automotive Ethernet

  • NVIDIA® Jetson AGX Orin™ 64GB SoM with 2048 CUDA Cores
  • 100/1000BASE-T1 Automotive Ethernet Support
  • 4 x GMSL-2 Cameras Support
  • 1 x 10GbE for High-Speed Data Transmission
  • 2 x Ethernet with PoE Support
  • Optional Backup Battery for Emergency

Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart

Module

NVIDIA® Jetson AGX Orin™ 64GB
(2048 CUDA cores + 12-core ARM Cortex-A78AE CPU + 64 GB LPDDR5)

Network

1 x Marvell® T1, 1 x Marvell® Industrial 10GbE, 2 x Intel® 2.5GbE



Security / Watchdog

Platform Security Controller (PSC), Security Engine (SE) /
The self-reset mechanism for unresponsive system

Interface

1 x H-CMTD T1 connector, 3 x M12 X-coded connectors (Phoenix Contact®)
2 x USB Type-A connector for USB 3.2
1 x HDMI
1 x HD Audio from the HDMI
1 x RS-232/422/485 via M12 connector
2 x USB Type-A connector for USB 3.2
1 x USB Type-C for System Recovery (Device only)
7 x Antenna holes


INTERNAL EXPANSION

  • 1 x M.2 3042/52 Key B slot (USB3.0) with a Nano SIM Card Slot
  • 1 x M.2 2230 Key E slot
    * Thermal solution is required for M.2 5G Module
1 x mPCIc Full size slot (USB.2.0 supported)




STORAGE (Internal)

1 x Internal 64GB eMMC (Pre-installed system BSP)
1 x M.2 2280 Key M supports NVMe SSD

Operating System / SDK

NVIDIA® JetPack 5.1.3 above, including Jetson Linux, and NVIDIA® development tools

Operating Temp.

-25°C ~ 70°C (-13°F ~ 158°F), with SSD, ambient w/ air flow 0.6m/s (ONX8 model)



Storage Temp.

-40 ~ 80ºC

Relative Humidity 10% RH – 90% RH (non-condensing)
Certification / Standard CE, FCC Class A, E-Mark, ECE R118, EN50155*, EN45545-2 (R25)
Vibration Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis • MIL-STD-810H – Method 514.6, Procedure I, Category 4
Shock MIL-STD-810H – Method 516.6, Procedure I, trucks and semi-trailers=15G (11ms) with SSD
Power Input DC 9V-60V for 12/24/48V via M12 K-coded connector (Phoenix Contact®)
Mechanical Aluminum Alloy
Wall Mount
5000 g
300 mm (L) x 190 mm (W) x 77,5 mm (H)
IP40
Model IBOX-650P-T1-JAO64-LE｜NVIDIA® Jetson AGX Orin™ 64GB / 1 x T1 / 1 x 10GbE / 2 x PoE
Data sheet Download (PDF)
Data sheet Print view
