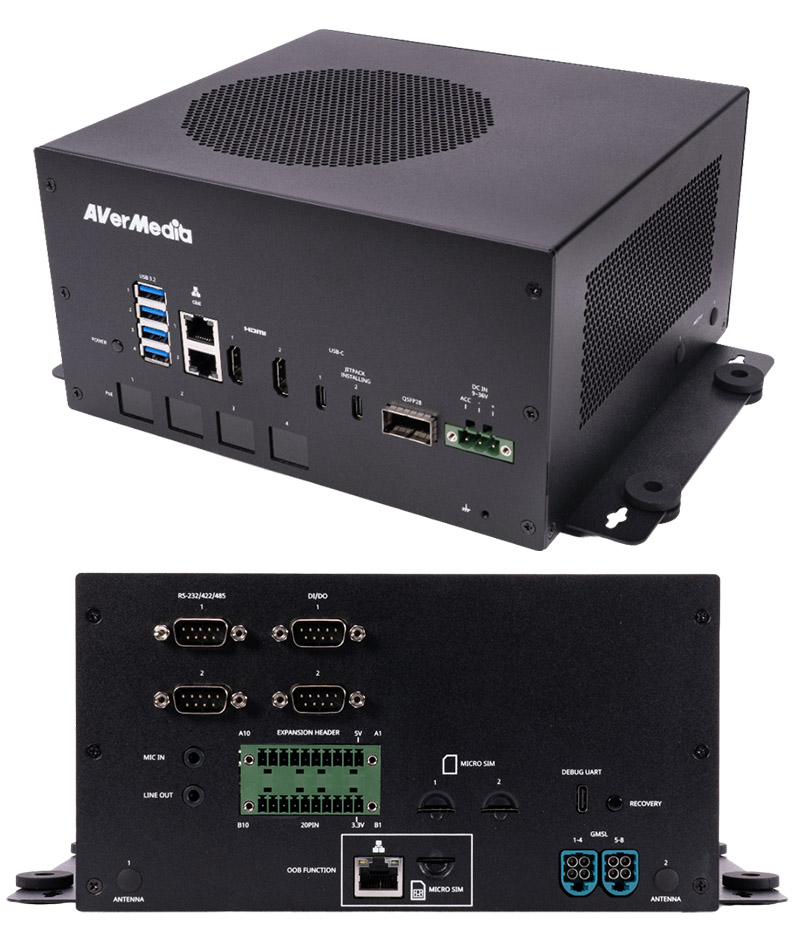

AVerMedia D331ATB Box PC (NVIDIA Jetson Thor T4000)

AVerMedia D331ATB Box PC (NVIDIA Jetson Thor T4000)
  • NVidia Jetson Thor T4000 !
  • FANLESS !


  • Embedded NVIDIA Jetson T4000
  • 2x GbE RJ-45
  • 1x QSFP (4× 25 GbE)
  • 1x M.2 Key E 2230 for WIFI 6
  • 1x M.2 Key B 3350 for 4G/5G
  • 2x M.2. key M 2280 for SSD
  • 1x mPCIe for GNSS
  • 4x CAN BUS & 4 x PWM
  • 2x HDMI 2.0 (3840x2160 at 60Hz)
  • 1 x USB-C (remove DP Alt mode), USB-PD 3.1
  • 4x USB 3.2 Type-A
  • 1x 120pin for GMSL camera board
  • 1x JTAG
  • Optional 8x PoE & 8xUSB (via daughter board)
  • Operating temperature: -25 to 50°C (BOX PC)
  • Dimension: W: 211mm x L: 194mm x H: 115mm
[more]
Share

7499.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart


  • Embedded NVIDIA Jetson T4000
  • 2x GbE RJ-45
  • 1x QSFP (4× 25 GbE)
  • 1x M.2 Key E 2230 for WIFI 6
  • 1x M.2 Key B 3350 for 4G/5G
  • 2x M.2. key M 2280 for SSD
  • 1x mPCIe for GNSS
  • 4x CAN BUS & 4 x PWM
  • 2x HDMI 2.0 (3840x2160 at 60Hz)
  • 1 x USB-C (remove DP Alt mode), USB-PD 3.1
  • 4x USB 3.2 Type-A
  • 1x 120pin for GMSL camera board
  • 1x JTAG
  • Optional 8x PoE & 8xUSB (via daughter board)
  • Operating temperature: -25 to 50°C (BOX PC)
  • Dimension: W: 211mm x L: 194mm x H: 115mm


AVerMedia’s D331ATB equips powerful NVIDIA Jetson T5000™/Jetson T4000™. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
D331ATB is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Model

D331ATB

TypeBoxPC
NVIDIA  Module CompatibilityNVIDIA Jetson T4000
Networking•2x GbE RJ-45 (OOB on board, one port is NCSI)•1x QSFP for 4x25GbE•1x M.2 key E 2230 for wifi 6•1x M.2 Key B for 5G

2x SIM Slot for 4G/5G module dual sim support
Display Output2 x HDMI output (3840 x 2160 at 60Hz)

Temperature		 Operating temperature: -25 to 50°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
Camera Inputs1x 120pin for GMSL camera board
USB 1x USB 3.2 Type-C for BSP install 1x USB 3.1 Type-C 4x USB 3.2 Type-A Optional 8x USB3.2 Type-A (via daughter board)
Audio2x 3.5mm phone jack for Mic in & line out.
Storage 2x NVMe M.2 Key M 2280 1x NVMe M.2 Key M 2280 x2 PCIe Gen5 (8xPoE, 8xUSB board, either one) 1x NVMe M.2 Key M 2280 x4 PCIe Gen5
TPM TI SLB9672XU2.0 on board
    Expansion 2x10 Euro Terminal Block (1x CAN-FD (Isolated 3KV), 3x CAN-FD with Transceiver, +5V  output 1A , +3.3V output 1A,UART, I2C) IO Board COMx1 & DB9 DI/DO      - UART to RS232/RS485/RS422 (DIP switch for programable)      -4xDI/4xDO with 20mA driver IO Board COMx1 & DB9 DI/DO:      -UART to RS232/RS485/RS422 (DIP switch for programable)       -4xDI/4xDO with 20mA driver 2x 5-pin JTAG connector 1x 40pin coaxial connector for PCIe expansion (daughter board 8xPSE/8xUSB ) Samtec  240P Board to Board (PCIe x8 / RGMII /VDD_9~12V / USB 3.0/USB 2.0/GPIOs /I2C (Via Daughter board)
GPS1xmPCIe for Optional Dual-RTK GNSS support (via daughter board)
SensorTemperature sensor for PCB top/bot Temperature measure
Power requirementTerminal block 3Pin & Mini-fit 6pin (Internal) 9~36V DC Input ACC IN / IGN Control (ACC optional, via switch)
Thermal Solution 1x SOM FAN 2x Chassis Fan (12V fan wafer)
ButtonsPower and Recovery
LED1x system power
1x input power
RTC BatterySupport RTC battery and battery life monitoring by MCU
PCB/Electronics Mechanical Info W: W: 211mm x L: 194mm x H: 115mm Weight: 3KG (TBD)
CertificationsCE, FCC, VCCI, KC (TBD)
Package1x Carrier boardScrewsNuts
Data sheet Download (PDF)
Data sheet Print view
